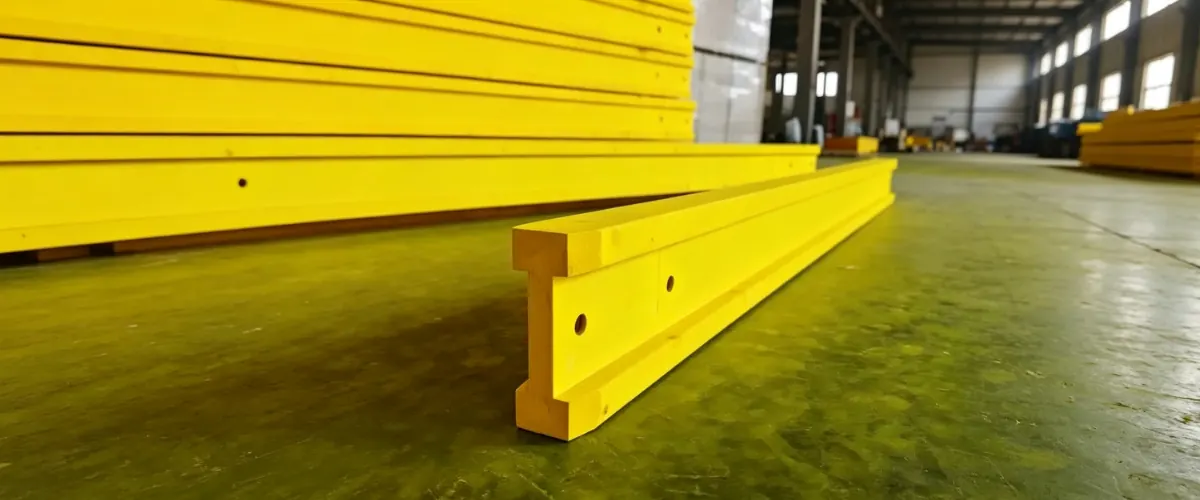

What Is an H20 Timber Beam?
An H20 timber beam is an engineered wood beam with an H-shaped cross-section, one of the most prevalent formwork support components in building construction.
- H: Stands for the H-shaped / I-shaped structural profile
- 20: Refers to the beam depth of approximately 200 mm (20 cm), the globally accepted standard dimension.
Compared with conventional solid timber beams, the H-shaped structure delivers superior bending strength while cutting down the overall weight of the beam.
Structure of H20 I-Beam
It adopts an I-beam configuration and consists of three parts:
- Top Flange: Generally made of spruce, pine or LVL (Laminated Veneer Lumber)
- Web: Constructed from plywood or LVL
- Bottom Flange: Manufactured from the same material as the top flange
Core Functions
- Support the weight of fresh concrete borne by plywood formwork
- Maintain precise dimensional accuracy of formwork
- Boost construction efficiency
- Cut labor requirements
How Does an H20 Timber Beam Work in Concrete Formwork?
An H20 Timber Beam for Formwork is not used independently. It works as part of a complete concrete support system.
────────────
Film Faced Plywood
════════════
H20 Timber Beam
════════════
Steel Support System
During concrete pouring:
- The film faced plywood creates the final surface shape of the concrete.
- The H20 Timber Beam supports the plywood panels and transfers loads.
- The steel props and support system transfer the loads safely to the ground.
This combination provides excellent stability and helps achieve smooth, high-quality concrete surfaces.
Common Applications of H20 Timber Beams
H20 Timber Beams are widely used in different types of concrete construction projects.
Slab Formwork
One of the most common applications of H20 Timber Beams is supporting floor and ceiling slab formwork.
- Lightweight installation
- High load capacity
- Easy adjustment
- Improved construction efficiency
Wall Formwork
H20 Timber Beams are widely used with plywood panels to create stable wall formwork systems.
- Accurate wall thickness
- Straight concrete surfaces
- Reliable structural support
Column Formwork
H20 Formwork Beams can also be used in column construction where strong temporary support is required.
They provide stable support during concrete pouring and curing processes.
Bridge and Infrastructure Projects
Due to their strength and reliability, H20 Timber Beams are also suitable for large-scale projects, including:
- Bridges
- Tunnels
- High-rise buildings
- Large concrete structures
Advantages of Using H20 Timber Beams
1. High Strength-to-Weight Ratio
The engineered H-shaped structure allows H20 Timber Beams to achieve high strength while maintaining a lightweight design.
Compared with traditional solid timber beams, H20 beams are easier to transport, handle, and install.
2. Excellent Dimensional Stability
H20 Timber Beams are manufactured under controlled production conditions, which helps minimize:
- Bending
- Twisting
- Shrinkage
- Size variation
This improves formwork accuracy and construction quality.
3. Easy Installation
Because of their lightweight design, workers can move and install H20 Timber Beams more efficiently.
- Labor costs
- Installation time
- Construction difficulties
4. Reusable Construction Material
With proper handling, cleaning, and storage, H20 Timber Beams can be reused for multiple construction projects.
This makes them a cost-effective and sustainable choice for contractors.
H20 Timber Beam Specifications
| Item | Specification |
|---|---|
| Product Name | H20 Formwork Timber Beam |
| Flange Material | Solid Wood (Spruce / Pine / Larch) |
| Web Material | Waterproof Plywood (Poplar or Birch core, optional) |
| Beam Height | 200 mm |
| Standard Flange Size | 80 mm (W) × 40 mm (T) |
| Standard Web Thickness | 27 mm / 30 mm (optional) |
| Length | 1.8 m – 6.0 m (customizable) |
| Surface Treatment | Waterproof Yellow Coating |
| Standard | EN 13377 |
Different construction projects may require customized lengths, dimensions, and packaging according to specific requirements.
H20 Timber Beam vs Traditional Timber Beam
| Feature | H20 Timber Beam | Traditional Timber Beam |
|---|---|---|
| Structure | Engineered H-shaped beam | Solid wood beam |
| Strength | Higher load-bearing capacity | Lower strength |
| Weight | Lightweight | Heavier |
| Size Accuracy | High consistency | Variable |
| Application | Professional formwork systems | General construction support |
| Reusability | Higher | Lower |
For professional concrete construction projects, H20 Timber Beams provide better performance, accuracy, and reliability.
H20 Timber Beam and Film Faced Plywood: The Ideal Formwork Combination
In most concrete construction projects, H20 Timber Beams are used together with Film Faced Plywood to create an efficient formwork system.
Film faced plywood provides:
- Smooth concrete surface
- Water resistance
- Easy demoulding
- Better concrete appearance
H20 Timber Beams provide:
- Strong structural support
- Load distribution
- Formwork stability
Together, they create a reliable and efficient solution for modern concrete construction.
For contractors, builders, and distributors, selecting high-quality H20 Timber Beams and film faced plywood can significantly improve construction efficiency and final concrete quality.
How to Choose a Reliable H20 Timber Beam Supplier?
When selecting an H20 Timber Beam manufacturer or supplier, buyers should consider the following factors:
Material Quality
Check:
- Timber grade
- Moisture control
- Adhesive quality
- Manufacturing process
High-quality raw materials ensure better strength and longer service life.
Production Standards
A professional H20 Timber Beam supplier should provide:
- Accurate dimensions
- Stable product quality
- Consistent production
- Reliable packaging
Customization Ability
Different projects may require:
- Customized lengths
- Different packaging methods
- Specific technical requirements
A reliable manufacturer should be able to provide flexible solutions according to customer needs.
Conclusion
An H20 Timber Beam is an essential component of modern timber formwork systems. With its lightweight structure, high strength, and excellent dimensional stability, it provides reliable support for concrete construction projects.
Whether used for slab formwork, wall formwork, column construction, or infrastructure projects, H20 Timber Beams deliver an efficient and practical solution when combined with film faced plywood and professional support systems.
For construction companies, contractors, and building material distributors, choosing a reliable H20 Timber Beam supplier is essential to ensure consistent quality, construction safety, and long-term project performance.
